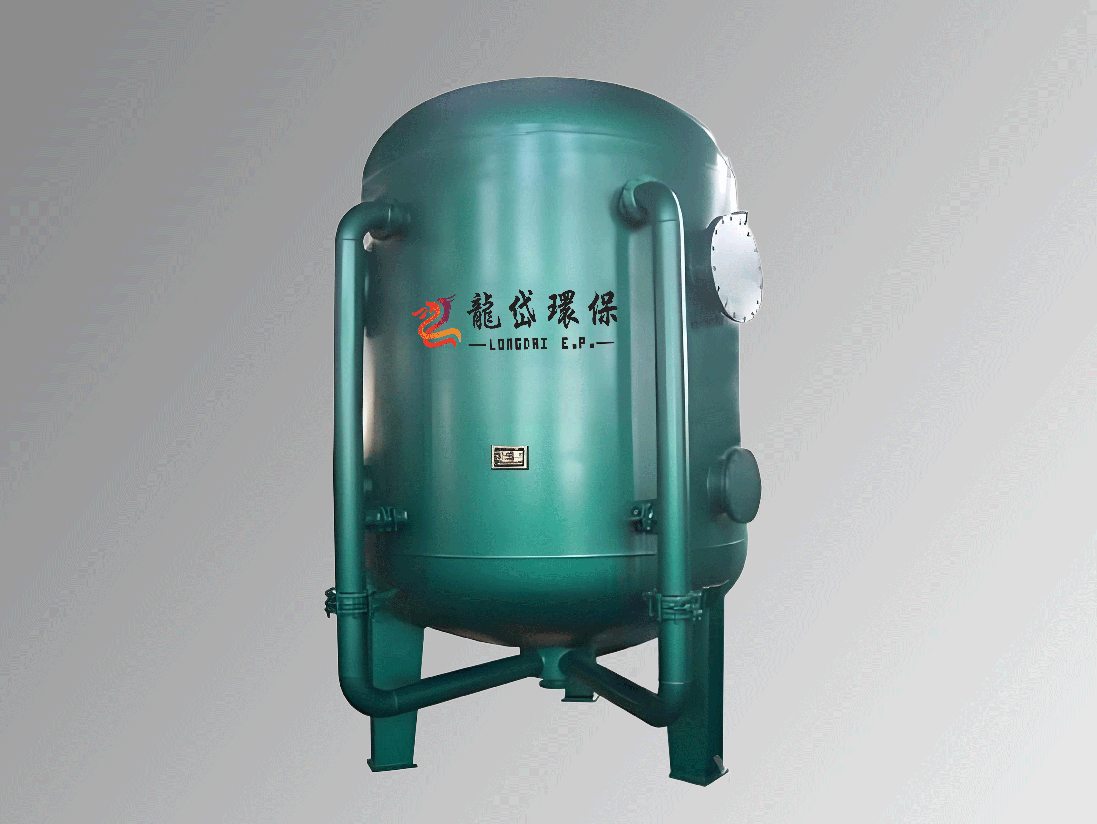

CTM type iron and manganese removal filter

The CTM type iron and manganese removal filter is suitable for the treatment of underground water with iron content below 10mg/l, manganese content below 2mg/l, and pH value not lower than 5.5. After treatment, the iron content in the water is less than 0.3mg/l and the manganese content is less than 0.1mg/l, which meets the national drinking water standards.

Iron and manganese in groundwater generally exist in a low-priced state. This device uses an efficient suction device to add gas to the deep well water source suction port. The water is thoroughly mixed and contacted to oxidize the low-priced iron and manganese in the water into a high valence state. Then, it is treated by oxidation, adsorption, and filtration through quartz sand or natural manganese sand filter media.

Scope of use

This type of filter is suitable for small and medium-sized water supply systems in urban and rural areas, and can also be used for industrial and mining enterprises that provide their own groundwater sources. It is used as a pre-treatment equipment for softened water and as a main equipment in groundwater treatment processes.

Filtration speed: 8-10 m/h, filter material: quartz sand or natural manganese sand (selected according to the water source quality), filter layer height: 1.3m
